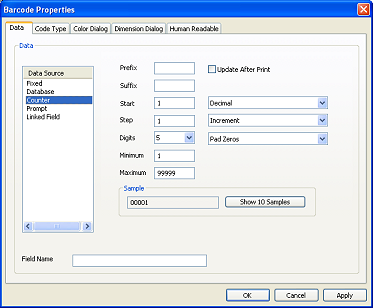

Barcode Properties - Counter Tab |
This option should be selected if a user-defined counter is to be used for the barcode data. The format of the counter string is customizable in the following ways.
Prefix - characters or numbers to be attached to the beginning of the barcode string
Update after print - if checked, the last value printed will be remembered and the Start value will be adjusted accordingly next time
Suffix - characters or numbers to be attached to the end of the barcode string
Start - the first number to start with in the series/counter
Number System - the number system to use, select from the following
-
Decimal - the standard decimal system
-
Alphabetic - the English alphabet (uppercase)
-
Alphabetic (L) - the English alphabet (lowercase)
-
Binary - the binary number system (base 2)
-
Octal - the octal number system (base 8)
-
Hexadecimal - the hexadecimal number system (uppercase, base 16)
-
Hexadecimal(L) - the hexadecimal number system (lowercase, base 16)
-
AlphaNumBase36 - the base 36 number system (uppercase)
-
AlphaNumBase36 (L) - the base 36 number system (lowercase)
Step - the increment or decrement values
Step Direction - whether to increment or decrement
Digits - number of zeros or space to pad
Padding - the type of padding to use
Minimum - the minimum value of the sequence
Maximum - the maximum value of the sequence
Show first 10 - display a dialog box to show the first ten entries in the series.
Field Name - name of the input field. This variable name can be used in the Linked Field feature. For example, you can have two fields, one is Serial Number, the other, Part Number. This two fields are given the field names serial and part. In the Linked Field feature, the data of this two fields can be combined together to form a new field.
