Thermal Printer Wizard - Select Printer and Paper |

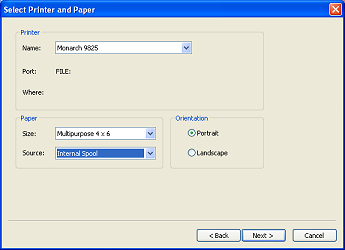

Select Printer and Paper
Name - the Name of the Printer setup in this computer
Port - port of the Printer e.g LPT1, LPT2
Where - location of the Printer
Size - size of the paper e.g. 2"x2" or User Defined
Source - source of the paper feed e.g. Manual feed or Internal Spool
Orientation - the orientation of the paper, either Potrait or Landscape.
Back - Click on this button to go back to the previous page/dialog of the wizard.
Next - Click on this button to go to the next page/dialog of the wizard.
Cancel - Click on this button to cancel the Thermal Printer Wizard
