Properties Tab |

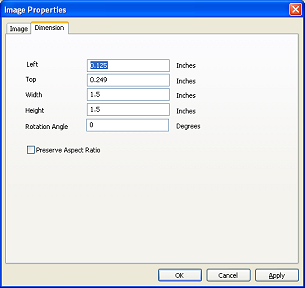

The image properties tab lets you adjust the dimensions of the image as well as setting its rotation angle and aspect ratio.
Left - the distance of the left edge of the image bounding box from the left edge of the label.
Top - the distance of the top edge of the image bounding box from the top edge of the label.
Width - the width of the image bounding box, must be a positive value
Height - the height of the image bounding box, must be a positive value
Rotation Angle - the rotation of the image in degrees. The valid range is 0 to 360 degrees.
Preserve Aspect Ratio - checking this option will cause the image to maintain its original width-to-height ratio when it is resized.
Remarks
An image that is rotated will usually have the Preserve Aspect Ratio option checked. To disable the Preserve Aspect Ratio option, the rotation angle of the image must be set to 0 degree.
