Prompt for Image data at print time |
You may want to create an image place-holder whose image will be supplied only at print-time.

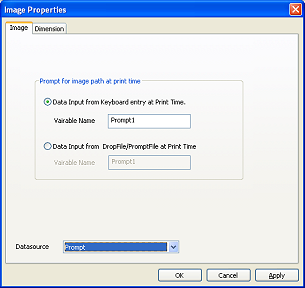

To create a prompt image, double click on an image to open its properties dialog box. In the Image Tab, choose prompt as the datasource. The interface will change to as follows.
Enter a variable name for the image and click OK.
During print time (after you have selected File : Print from the menu, and click OK), SmartCodeStudio will display a Prompt dialog with this variable name. You can manually type in the image path, or click the Image Browse button to select an image.
Image Browse button
