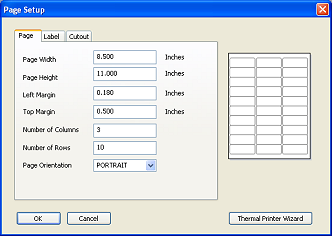

Page Setup Dialog - Page Tab |
This tab allows you to customize the page containing the labels. A page is a sheet of paper containing several labels.
Page Width - the width of the page
Page Height - the height of the page
Left Margin - the distance of the first label from the left edge of the page
Top Margin - the distance of the first label from the top edge of the page
Number of Columns - the number of label columns of in a page
Number of Rows - the number of label rows in a page
Page Orientation - indicates portrait or landscape mode. In landscape mode, the data is rotated 90 degrees during print out.
